Wie die Hammond-Orgel funktioniert
Mit
Joe GlossopJoe Glossop erklärt, was im Inneren einer Hammond passiert – den Tonrad-Generator, die neun Kontakte pro Taste und wie die Zugriegel die Pfeifen einer Kirchenorgel nachbilden.
Das steckt im Kurs
21 Lektionen (1h 25m) · 1 gratis
01. The Small Faces - Tin Soldier (Auftritt)
1:16
02. The Small Faces - Tin Soldier (Analyse)
7:03
03. Deep Purple (John Lord) - Smoke On The Water (Aufführung)
1:02
04. Deep Purple (John Lord) - Smoke On The Water (Analyse)
8:38
05. Allman Brothers - Whipping Post (Interpretation)
1:23
06. Allman Brothers - Whipping Post (Analyse)
8:39
Transkript der Lektion
Understanding the Tone Wheel Generator
The guts of it are this tone wheel generator that has 96 tone wheels on a rod. They spin in an electric current, and each time the little cog cuts through the current, a tone is produced.
Key Features
- Each key has nine contacts which correspond to nine drawbars.
- As you press the key down, you gradually get from high to low as the contacts engage one by one.
Complexity and Design
- In each key, there are nine contacts going up and down vertically.
- It's a very complicated system, and I don't know how he came up with it.
- It's amazing that they still work all this time later, considering the design is about 70 to 80 years old.
Differences from Traditional Organs
- It's different from a church organ in that it is electric to begin with.
- These drawbars are modeled on lengths of pipe from a church organ. The original idea was to recreate a church organ.

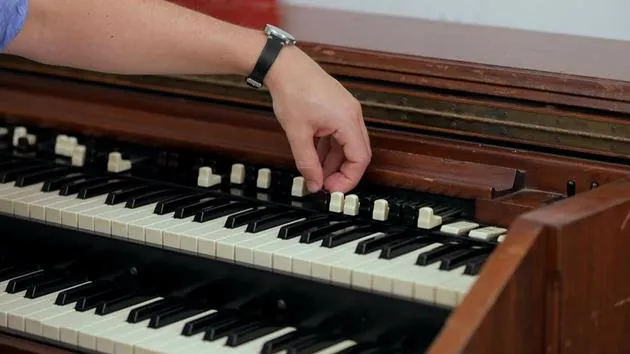

Drawbar Specifications
If you see on slightly later models from the late 60s onward through the 70s, the drawbars had the lengths of pipe written on:
- 16
- 5 and a third
- 8
- 4
- 2 and 1
- Sub fundamentals, fundamentals, and fifths are structured as follows:
- The white ones are all fundamentals.
- The colored ones are sub fundamentals and fifths.
This model was made from 1955 to 1975. It is truly an incredible bit of engineering!
